Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

ابن دردش الآن

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery
Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

صورة كبيرة :  Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: KUoman
إصدار الشهادات: CE UL
شروط الدفع والشحن:
الحد الأدنى لكمية: 1
الأسعار: based on specification
تفاصيل التغليف: التعبئة الدولية القياسية
وقت التسليم: حوالي 10 أيام عمل
شروط الدفع: تي/تي
القدرة على العرض: 100 قطعة/شهر

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

وصف
إجمالي تخزين الطاقة: 2560 واط ساعي / 5248 واط ساعي / 7680 وات ساعي | 5120 واط ساعي / 10496 واط ساعي / 15360 واط ساعي أقصى تيار للشحن: 100 أمبير (100 أمبير)؛ 200 أمبير (205 أمبير/300 أمبير)
دورة الحياة: 6000-8000 دورة بمعدل 80% وزارة الدفاع التفريغ قطع الجهد: 21.6 فولت | 43.2 فولت
نوع الشاشة: شاشة LCD تعمل باللمس مثلثة ماكس التفريغ الحالي: 100 أمبير (100 أمبير)؛ 200 أمبير (205 أمبير/300 أمبير)
درجة حرارة التشغيل: التفريغ: -20 درجة مئوية ~ 60 درجة مئوية؛ الشحن: 0 درجة مئوية ~ 55 درجة مئوية جهد الشحن العائم: 28.8 فولت | 57.6 فولت
ذروة التفريغ: مستمر 200 أمبير (10 كيلو واط)، الذروة 400 أمبير (20 كيلو واط) الحجم المتوفر: 100 أمبير / 205 أمبير / 300 أمبير
الجهد المقنن: 25.6 فولت | 51.2 فولت نطاق جهد العمل: 21.6 فولت - 29.2 فولت | 43.2 فولت-58.4 فولت
إبراز:

Multi-Layer BMS lithium battery

,

Household storage battery with overcharge protection

,

Indoor lithium battery temp safe

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery
Product Overview

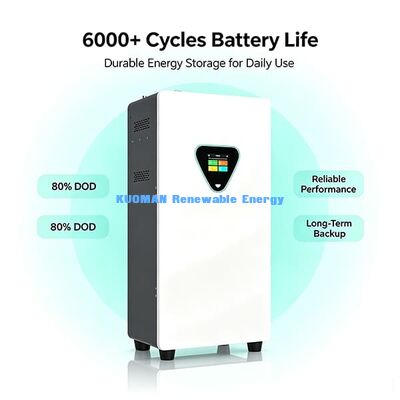

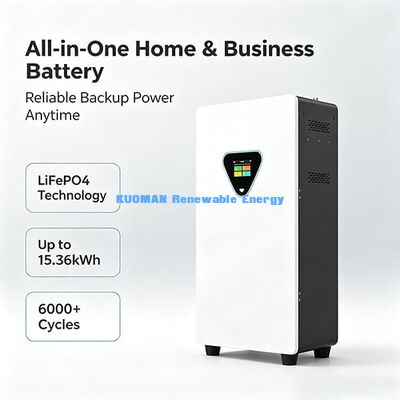

Mobile LiFePO4 Home & Commercial Energy Storage Battery, 25.6V / 51.2V Series (100Ah/205Ah/300Ah). Our vertical all-in-one lithium iron phosphate energy storage battery is designed for residential backup, solar off-grid, and small commercial power storage.

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery
Product Specifications
Model Spec 25.6V Series 51.2V Series
Available Capacity 100Ah / 205Ah / 300Ah 100Ah / 205Ah / 300Ah
Total Energy Storage 2560Wh / 5248Wh / 7680Wh 5120Wh / 10496Wh / 15360Wh
Rated Voltage 25.6V 51.2V
Working Voltage Range 21.6V-29.2V 43.2V-58.4V
Max Charge / Discharge Current 100A(100Ah); 200A(205Ah/300Ah) 100A(100Ah); 200A(205Ah/300Ah)
Discharge Cut-off Voltage 21.6V 43.2V
Floating Charge Voltage 28.8V 57.6V
Cycle Life 6000-8000 Cycles @80% DOD, retain 80% capacity after long-term use
Operating Temperature Discharge: -20℃ ~ 60℃; Charge: 0℃ ~ 55℃
Peak Discharge Support Continuous 200A (10kW), Peak 400A (20kW) for heavy appliances
Screen & Monitor Triangle touch LCD, real-time display voltage, current, SOC, single cell status
Key Features
  • Ultra-Safe LiFePO4 Battery Chemistry: Zero thermal runaway risk, no toxic gas emission, fully safe for indoor household & commercial installation. No fire hazard compared to ternary lithium batteries.
  • Intelligent 6-Layer Full BMS Protection: Built-in advanced BMS with overcharge, over-discharge, over-current, short-circuit, over-temperature & cell imbalance protection; real-time single cell monitoring + automatic active cell balancing to extend battery lifespan.
  • Long Service Cycle Life: Up to 8000 deep cycles at 80% DOD, daily use supports over 15 years stable service, far longer than lead-acid batteries.
  • High Power Output Capacity: Continuous 200A discharge (10kW), peak 400A (20kW), fully powers heavy loads: air conditioners, water pumps, refrigerators, medical equipment.
  • Wide Compatibility: Works seamlessly with solar panels (MPPT inverter recommended), diesel generators, and municipal grid power; supports on-grid / off-grid / hybrid solar energy systems.
  • Scalable & Mobile Vertical Cabinet Design: Single unit independent use, stack up multiple units to expand capacity up to 30kWh; vertical wall-mounted floor standing design with touch control screen, compact footprint, easy moving & indoor placement.
  • Wide Temperature Adaptability: Stable discharge performance from -20℃ to 60℃, charge normally between 0℃-55℃, suitable for cold northern areas & hot tropical regions.
Energy storage battery application scenarios and installation
Application Scenarios

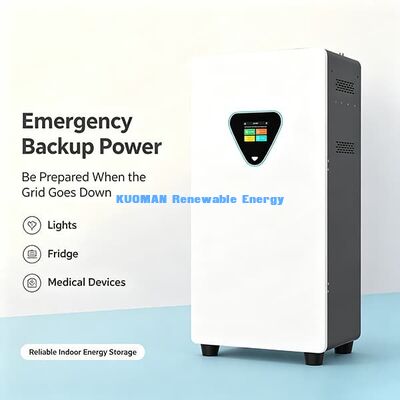

  • Home Blackout Emergency Backup
  • Residential Solar Self-Consumption
  • Grid Time-of-Use (TOU) Peak Shaving
  • Off-Grid Cabins, Tiny Homes & Remote Villas
  • Small Business & Commercial Power Storage
  • Continuous Power Supply for Medical Equipment
  • Solar & Generator Hybrid Off-Grid Power Systems
