Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

ابن دردش الآن

Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit
Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

صورة كبيرة :  Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: KUOMAN
رقم الموديل: 25.6/51.2 فولت
شروط الدفع والشحن:
الحد الأدنى لكمية: 1
الأسعار: USD
تفاصيل التغليف: التعبئة الدولية القياسية
وقت التسليم: 20 يوم عمل
شروط الدفع: تي/تي
القدرة على العرض: 100 جهاز كمبيوتر شخصى / شهر

Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

وصف
طاقة التفريغ: 5 كيلو واط مستمر نوع العاكس: هجين
واجهة الاتصالات: CAN/RS485/RS232/الاتصال الجاف سعة: 13.5 كيلوواط ساعة
الجهد االكهربى: 48 فولت نوع البطارية: ليثيوم أيون
دورة الحياة: ما يصل إلى 10000 دورة القدرة الاسمية: 200 أمبير
عمق التفريغ: 90% أقصى تيار للشحن: 100A / 200A
ماكس التفريغ الحالي: 100A / 200A درجة حرارة التشغيل: -20 درجة مئوية ~ 55 درجة مئوية (-4 درجة فهرنهايت ~ 131 درجة فهرنهايت)
إبراز:

Smart BMS lithium iron phosphate battery

,

25.6V 300Ah home solar storage

,

Stackable self-consumption battery unit

Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

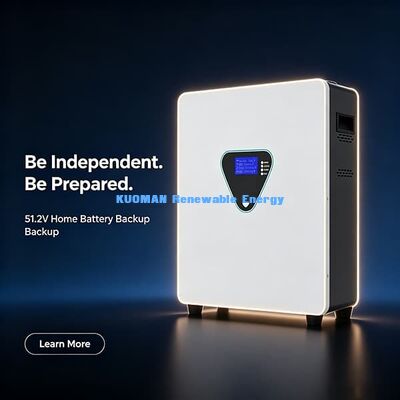

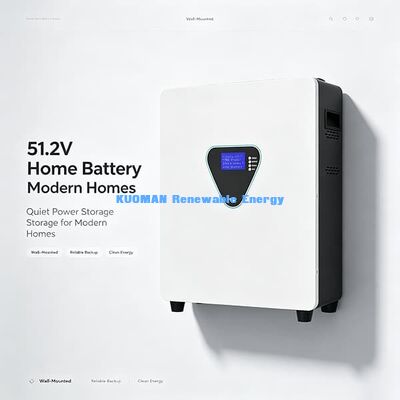

Our vertical all-in-one lithium iron phosphate energy storage battery is designed for residential backup, solar off-grid, and small commercial power storage. Built with premium LiFePO4 cells & intelligent multi-layer BMS, this stackable mobile battery delivers ultra-long service life, complete safety protection, and wide compatibility with solar inverters, generators, and grid power. Compact vertical cabinet design with touch LCD screen, easy indoor installation, plug-and-play operation for all energy storage demands.
Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit
Technical Specifications
Model 25.6V 100Ah 25.6V 205Ah 25.6V 300Ah 51.2V 100Ah 51.2V 205Ah 51.2V 300Ah
Energy Storage 2560Wh 5248Wh 7680Wh 5120Wh 10496Wh 15360Wh
Rated Voltage 25.6V 25.6V 25.6V 51.2V 51.2V 51.2V
Voltage Range 21.6V-29.2V 21.6V-29.2V 21.6V-29.2V 43.2V-58.4V 43.2V-58.4V 43.2V-58.4V
Max Charge Current 100A 200A 200A 100A 200A 200A
Max Discharge Current 100A 200A 200A 100A 200A 200A
Discharging Cut-off Voltage 21.6V 21.6V 21.6V 43.2V 43.2V 43.2V
Floating Voltage 28.8V 28.8V 28.8V 57.6V 57.6V 57.6V
Cycle Life: 6000 cycles @ 80% DOD
Operating Temperature: -20°C ~ 55°C (-4°F ~ 131°F)
Product Features
  • Long Cycle Life: 6000 cycles at 80% depth of discharge (DOD), ensuring decades of reliable service compared to traditional lead-acid batteries.
  • High Safety & Stability: LiFePO4 chemistry eliminates fire and explosion risks, making it ideal for indoor wall-mounted installation.
  • Flexible Capacity Options: Choose from 2.56kWh to 15.36kWh models to scale your energy storage system as your needs grow.
  • Wide Temperature Tolerance: Operates seamlessly in extreme climates from -20°C to 55°C, suitable for global residential use.
  • High Charge/Discharge Rates: Supports up to 200A max charge/discharge current for fast energy transfer and high-power appliance compatibility.
  • Seamless Solar Integration: Works perfectly with BUSBYR solar hybrid inverters (BSSI-V-GN6200 / BSSI-V-GN10200) for off-grid and grid-tied solar systems.
  • Smart App Control: Monitor battery status, energy flow, and system performance remotely via mobile app for convenient management.
  • Space-Saving Wall-Mount Design: Compact, wall-mounted form factor maximizes floor space in homes and small businesses.
Application Scenarios
  • Residential Backup Power: Keep critical appliances (air conditioners, refrigerators, TVs, lights, computers) running during grid outages.
  • Off-Grid Solar Systems: Power remote homes, cabins, or tiny houses without access to utility grids.
  • Peak Shaving & Cost Reduction: Store excess solar energy during the day to use during peak evening hours, lowering electricity bills.
  • Small Commercial Use: Support small shops, offices, or farm operations with reliable, clean energy.
  • Hybrid Power Systems: Integrate with solar panels, the utility grid, or generators for uninterrupted power supply.Smart BMS Lithium Iron Phosphate Battery 25.6V 300Ah 7680Wh Stackable Home Solar Self-Consumption Storage Unit

Frequently Asked Questions (FAQ)

Q1: What is the difference between the 25.6V and 51.2V models?
A:​ The 25.6V models are typically used for smaller residential setups or low-voltage applications, while the 51.2V models are designed for larger homes or commercial applications requiring more power. The 51.2V system offers higher efficiency and longer lifespan due to lower current draw.
Q2: Can I connect these batteries in parallel?
A:​ Yes, the "Stackable" feature allows you to connect multiple batteries in parallel to increase the total capacity (e.g., combining two 5kWh batteries for a 10kWh system).
Q3: How long will the battery last on a full charge?
A:​ The backup time depends on the power consumption of your appliances. For example, a fully charged 5.12kWh (51.2V 100Ah) battery can run a 500W load for approximately 10 hours.
