تفاصيل المنتج:
|
| القدرة الاسمية: | 144 أ | الطاقة الاسمية: | 215 كيلو واط ساعة |
|---|---|---|---|
| الجهد الاسمي: | 400 فولت (320 ~ 460 فولت) | درجة حرارة التشغيل: | -20 درجة مئوية إلى 50 درجة مئوية |
| دورة الحياة: | 10000 دورة | سعة: | 100 كيلوواط ساعة |
| بروتوكول الاتصالات: | مودبوس، كان، وإيثرنت | انتاج الطاقة: | 250 كيلوواط |
| وزن: | 1200 كجم | كفاءة: | 90% |
| الجهد المقنن: | 768V | أبعاد: | 1150 مم × 755 مم × 1550 مم |
| إبراز: | commercial energy storage system,extreme temperature resistant power storage,off-grid energy storage system |
||

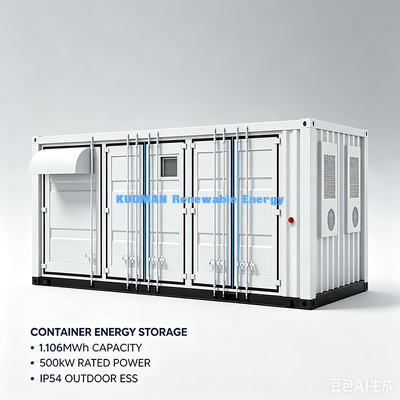

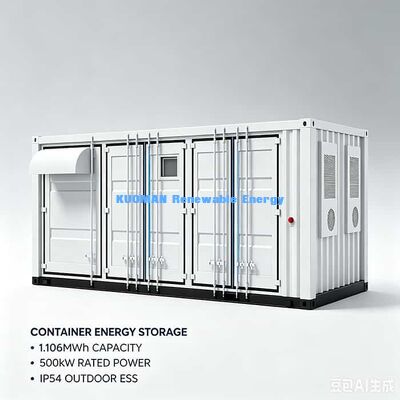

IP54 container energy storage system 500kW/1.106MWh high voltage ESS with intelligent air cooling & full BMS, wide temperature range -30℃~55℃, scalable for commercial, industrial, solar grid energy storage projects.
Technical Specifications (ESSC0500A-1106)
| Parameter Item | Value |
|---|---|
| DC Parameters | |
| Battery Capacity | 1.106 MWh |
| Battery Rack Quantity | 8 sets |
| BMS Communication | RS485 / CAN |
| DC Voltage Range | 600 ~ 850 V |
| AC Parameters | |
| Rated AC Power | 500 kW |
| Max AC Power | 550 kW |
| Rated AC Current | 722 A |
| Max AC Current | 800 A |
| DC Current Component | ＜0.5% |
| THDi | ＜3% (under rated power) |
| Rated Grid Voltage | 400 V |
| Allowable Grid Voltage | 320 ~ 460 V |
| Grid Frequency | 50 / 60 Hz, adjustable range 45~55Hz / 55~65Hz |
| Power Factor | 1 Lagging ~ 1 Leading |
| Isolation Method | No Isolation |
| General Hardware Data | |
| Ingress Protection Grade | IP54 |
| Fire Extinguishing System | Supported |
| Full Power Continuous Running Time | 2 Hours |
| Operating Temperature | -30℃ ~ 55℃ |
| Overall Dimension (W×D×H) | 12192 × 2438 × 2896 mm |
| Total Weight | 3.5 Tons |
| EMS Communication Interface | RS485, TCP/IP |
| PCS Cooling Mode | Intelligent Air Cooling with Temperature Control |
| Battery Cooling Mode | Air Conditioning Cooling |
| Max Working Altitude | 4500m (power derating over 3000m) |
| Relative Humidity | 0 ~ 95% Non-Condensing |
1.Flexible Rapid Deployment
Standard containerized integrated design, easy sea/land transportation, fast on-site commissioning, perfect for temporary power stations, remote industrial sites and off-grid solar projects.
2.High Grid Compatibility & Efficiency
Low THDi below 3% and precise power factor adjustment reduce energy loss, smooth grid connection, compatible with new energy photovoltaic, wind power and municipal power grid.
3.Ultra Long Service Life
Advanced BMS balanced management + independent air conditioning cooling system reduce battery attenuation, extend cycle life and greatly lower later maintenance cost.
4.Strong Scalability
Modular standardized design supports parallel expansion of multiple ESS containers to meet growing energy storage capacity demand for large industrial parks and power plants.
5.Extreme Weather Resilience
Wide temperature working range and high altitude adaptation realize stable operation in cold northern regions, high-temperature desert areas and coastal humid zones worldwide.
